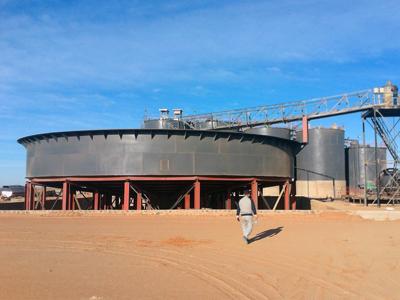

This leaching tank is used in carbon paste flow and cyanidation process. The carbon-immersing tank should match other auxiliary devices like carbon-separating screen, and recessed impeller pump, etc. Its structural features: the upper and lower layer of impellers are of steel plate encapsulated with rubber, which are connected by means of bolts, with the features like good equilibrium, easy replacement, and long service life. The main shafts are divided into the upper layer and the lower layer, which are connected by means of locating flanges, able to reduce the lifting height; inflate at several points dispersingly, with good air mixing performance.
Leaching Tank Technical Specifications:
| Model | (mm)
Size of the tank (D×H) |
(m³)
Effective volume |
(r/min)
Revolution of impeller |
(mm)
D of impeller |
Motor model | (kw)
Motor power |
Cycloid planetary reducer model | (kg)
W of tank |
(kg)
G.W |
| SJ2.0×2.5 | 2000×2500 | 6 | 52 | 909 | XLD-4 | 2.2 | XLD2.2-4-29 | 1609 | 2144 |
| SJ2.5×3.15 | 2500×3150 | 13.14 | 52 | 935 | XLD-4 | 2.2 | XLD2.2-4-29 | 2241 | 3095 |
| SJ3.0×3.0 | 3000×3000 | 18 | 40.85 | 1130 | XLD4-4 | 4 | XLD4-5-35 | 3391 | 4134 |
| SJ3.0×3.15 | 3000×3150 | 18.93 | 43 | 1130 | XLD-4 | 4 | XLD4-5-35 | 2801 | 4160 |
| SJ3.0×3.5 | 3000×3500 | 21 | 43 | 1130 | XLD-4-5 | 4 | XLD4-5-35 | 3211 | 4334 |
| SJ3.15×3.55 | 3150×3550 | 24 | 43 | 1260 | XLD-4-5-35 | 4 | XLD4-5-35 | 3433 | 4557 |
| SJ3.5×3.5 | 3500×3500 | 30 | 52 | 1310 | XLD5.5-5.29 | 5.5 | XLD5.5-5-29 | 3480 | 4893 |
| SJ3.5×4.0 | 3500×4000 | 32.7 | 52 | 1310 | XLD5.5-5.29 | 5.5 | XLD5.5-5-29 | 4230 | 5050 |
| SJ3.55×4.0 | 3550×4000 | 33.6 | 43 | 1310 | XLD4-5-35 | 4 | XLD4-5-35 | 4260 | 5025 |
| SJ3.7×4.2 | 3700×4200 | 38.4 | 42 | 1310 | XLD4-5-43 | 4 | XLD4-5-43 | 5266 | 6153 |
| SJ4.0×4.5 | 4000×4500 | 48 | 35 | 1750 | XLD7.5-7-43 | 7.5 | XLD7.5-7-43 | 6397 | 7569 |
| SJ4.5×5.0 | 4500×5000 | 71.57 | 35 | 1750 | XLD7.5-7-43 | 7.5 | XLD7.5-7-43 | 7153 | 10864 |
| SJ5.0×5.6 | 5000×5600 | 98 | 31 | 2046 | XLD11-8-47 | 11 | XLD11-8-47 | 8740 | 14291 |
| SJ5.5×6.0 | 5500×6000 | 112 | 31 | 2100 | XLD11-8-47 | 11 | XLD11-8-47 | 12467 | 18745 |
| SJ6.5×7.0 | 6500×7000 | 195 | 21 | 2400 | XLD22-10-47 | 22 | XLD22-8-47 | 17890 | 26900 |
| SJ7.0×7.5 | 7000×7500 | 245.4 | 21 | 2400 | XLD22-10-47 | 22 | XLD22-10-47 | 20505 | 29030 |
| SJ7.5×8.0 | 7500×8000 | 268.6 | 21 | 2900 | Y225S-8 | 18.5 | XLD22-10-47 | 22552 | 32796 |
| SJ8.0×8.5 | 8000×8500 | 342 | 18.5 | 3200 | Y250M-8 | 30 | XLD22-11-59 | 33488 | 42467 |
| SJ8.5×9.0 | 8500×9000 | 395 | 18.5 | 3300 | Y250M-8 | 30 | Y250-8 | 34130 | 46623 |
